MS120

Whether it is listening to high-definition streaming music, locally from your network, from a USB key, a hard drive, Bluetooth®, or your favourite internet radio stations, our mini network player MS120 is totally adapted to the current needs related to the reading of dematerialized music files. It embeds a high-performance converter and can be used as a pure source or as a preamplifier.

  • 4 mm brushed aluminium front.
  • 4,6 VA transformer dedicated to audio stages.
  • High-quality MKP technology link capacitors.
  • BURR-BROWN PCM1796 converter:
             – Dynamic: 123 dB.
             – Signal/Noise ratio: 123 dB.
  • 5″ TFT LED colour graphic display (800*480).
  • Discrete component preamp stages without negative feedback in pure Class A.
  • Analogue volume management (switched resistors) that can be bypassed.
  • Specific power supply dedicated to the audio stages.
  • Specific power supply dedicated to the digital audio line converter.
  • Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
  • Playback of audio files present on the network (DLNA and UPnP compatible) in a wired RJ45 or Wifi connection.
  • Display of names, tags, resolutions and album covers.
  • “Gapless” system (no cut between pieces).
  • Ability to create playlists.
  • USB-A file systems: FAT32, NTFS, EXT2/3/4.
  • ATOLL “streamer” remote control supplied as standard.
  • ATOLL Signature App (Android and IOS).

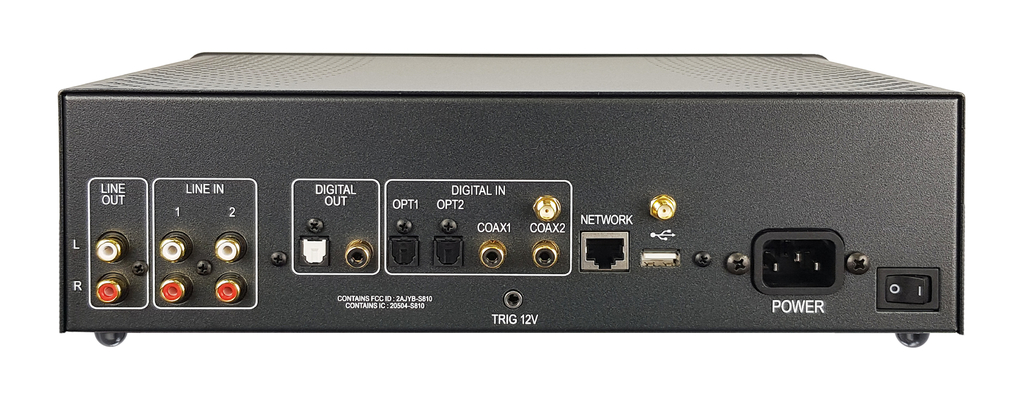

CONNECTIVITY

Audio inputs
2 Stereo line inputs.
4 Digital inputs: 2 coaxial, 2 optical.
1 Bluetooth® 4.2 input.
2 USB-A inputs (1 front, 1 rear).

Audio outputs
1 Stereo line output.
2 Digital outputs: 1 Coaxial, 1 Optical Toslink.

Various
1 RJ45 input (network).
1 Trigger output (12V).
1 WIFI antenna (802.11b/g/n).
1 Bluetooth® antenna.

TECHNICAL DATA

Power supply: 4,6 + 3,2 VA
General power supply: 4,5 W + 4,5 W flyback topology
Total of capacitors: 5 435 µF
Output stages: 2 Discrete stages with no feedback
Dynamic: 123 dB
Output impedance: 22 Ω
Maximum input level: 3,5 Vrms
Output level: 2,8 Vrms
Signal/Noise ratio: 123 dB
Distortion at 1 kHz: 0,0005%
Bandwidth: 5 Hz – 20 kHz
Rising time: 1,7 µs
Digital/analogue converter: Burr-Brown PCM1796 24 bits/192 kHz – DSD128
Dimensions: 320×210×94 mm
Weight: 3 Kg

EXTERNAL CONTROLS

  • Playback of audio files present on the network (DLNA and UPnP compatible) in a wired or Wifi connection.
  • Display of names, tags, resolutions and album covers.
  • “Gapless” system (no cut between pieces).
  • Ability to create playlists.
  • External control is possible (by Qobuz, Audirvana, etc.) via the RTSP protocol.

ROON COMPATIBILITY​

ATOLL Signature network readers: MS120, ST200 Sig, ST300 Sig, SDA200 Sig and SDA300 Sig are now compatible with Roon. To benefit from this service, simply download the latest update online via the Settings/Software update menu. Then, go to Settings/Device ID menu and choose the device model you have from the list: ST200, MS120, SDA200…

STREAMING

You also have direct access from the application to these streaming services: Qobuz, Tidal, Tidal Connect, Deezer, Spotify, and HighResAudio.
During the first use, you will need to enter your username and password. Once your account is valid, you will be able to access all the services linked to your account.

STREAMING WITH SPOTIFY CONNECT

You can access Spotify from the ATOLL Signature app: use your phone, tablet, or computer as a remote control for Spotify.

STREAMING WITH TIDAL CONNECT

You can stream directly from the Tidal app to your ATOLL Streamer, lossless and in high quality.

INTERNET RADIO

This menu gives you access to the internet radio menu, i.e. approximately 100,000 internet radio stations as well as podcasts.

  • In WIFI or RJ45 connection, access to internet radios by the Airable system in high definition: choice of more than 100,000 stations, access to podcasts…
  • Display of station logos and other information: titles, artists, resolution, etc.
  • Possibility of adding each radio station to a “favorites” menu.

AUDIO

  • Discrete component preamp stages without negative feedback in pure Class A.
  • Analog volume management (switched resistors) that can be bypassed.
  • Specific power supply dedicated to the audio stages.
  • Specific power supply dedicated to the analog-digital audio converter.
  • MKP technology link and filter capacitors.
  • Burr-Brown PCM1796 digital to analog audio converter.

INTERFACE

  • 5″ TFT LED color display (800*480).
  • Standard remote control.
  • Apple® and Android® applications are downloadable for free.
  • Download the “ATOLL Signature” app.

SUPPORTED FILE TYPES​

  • Files played: MQA, DSF, LPCM, FLAC, ALAC, AIFF, WMA, OGG, WAV, AAC, MP3.
  • Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 & 128.
  • USB-A file systems: FAT32, NTFS, EXT2/3/4.

“The MS120 and MA100 are a demanding duo. With this minimalist duo on the visual level, but hyper-complete in terms of functionality, Atoll scores a big blow and confirms its place at the forefront of generalist and inspired audio brands! Very well-timbered, delicate, subtle, and dynamic, this ultra-compact couple is a marvelous musical companion who never tries to do too much but strives precisely to preserve the accuracy and the naturalness of the modulation, whatever the type of signal it is being asked to decode. A combination offered at a competitive price deserves your full attention when looking for a compact, complete, musical, and scalable solution. (…)”

Laurent Thorin, Vumetre magazine, No. 23, May-June 2019

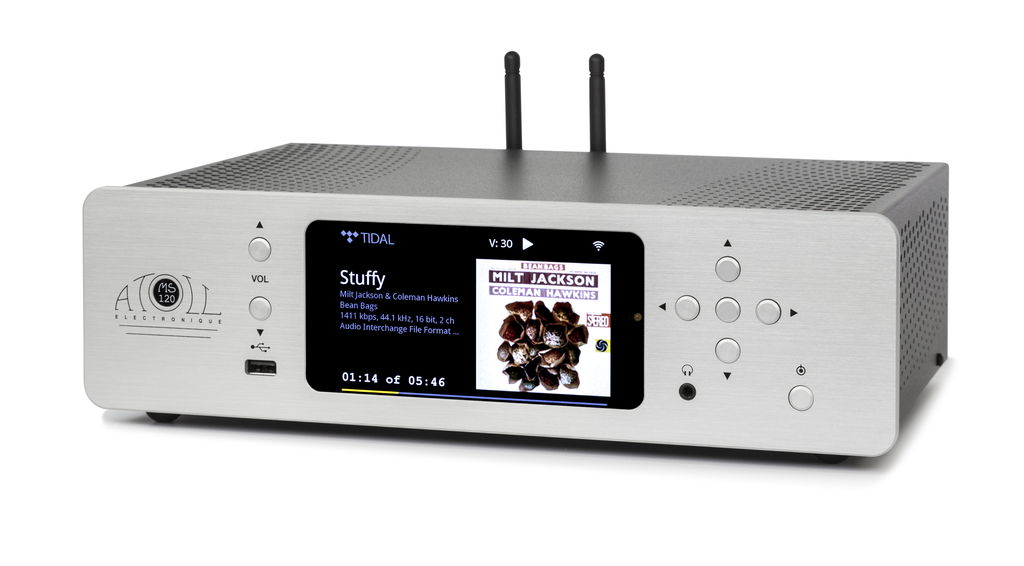

The MS120 is available in black or natural aluminium version:

Black anodized brushed aluminium finish.
Silver anodized brushed aluminium finish.
