DR200 Signature

The CD drives of the Signature series have benefited from many innovations, whether at the level of the power supplies or the digital output stages. The mechanics and the chassis have received specific anti-vibration treatment.

  • 8 mm brushed aluminium front.
  • Coaxial, optical and AES/EBU outputs.
  • Digital signal isolation with a specific 1:1 transformer dedicated to S/PDIF and AES/EBU outputs.
  • Linear power supply for digital stages with a specific 30 VA transformer.
  • Specific anti-vibration treatment for CD mechanics and chassis.
  • Optimized board for jitter reduction.
  • Isolation of digital signals by LVDS circuit (signal reformatting).
  • Original TEAC central CD mechanics.
  • Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
  • Double-sided circuit boards with nickel/gold finish.
  • Low consumption OLED display.
  • Reading the CD-Text.
  • ATOLL global remote control.

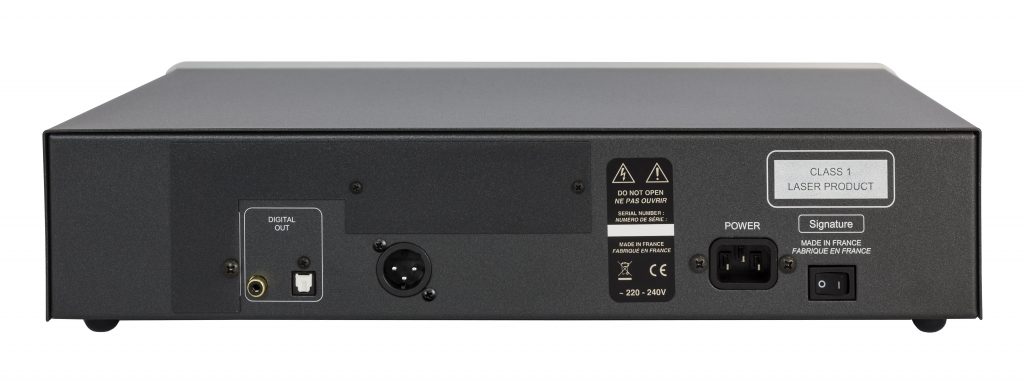

1 Coaxial output on high-quality PTFE insulated connector.
1 Optical output.
1 AES/EBU output.

View the standard for XLR connector wiring.


Power supply: 30 VA
Total of capacitors: 122 100 µF
Output signal amplitude: 1V
Digital Outputs: Coaxial-Optical-AES/EBU
Consumption: Standby: 3,8 W / Playback: 6 W
Dimensions (mm): 440×284×95
Weight: 7 Kg

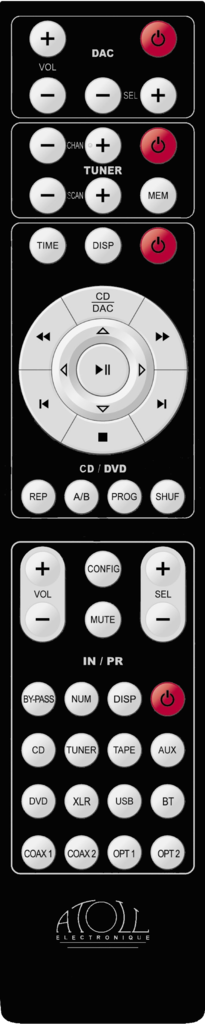

The remote control is supplied as standard on each model and allows remote control of all ATOLL products (Integrated, preamps, Tuner, DAC).
In addition, it has all the basic functions including programming, random play, repeat, etc.

The DR200 Signature is available in black or natural aluminium:

Black anodized brushed aluminum finish.
Silver anodized brushed aluminum finish.
